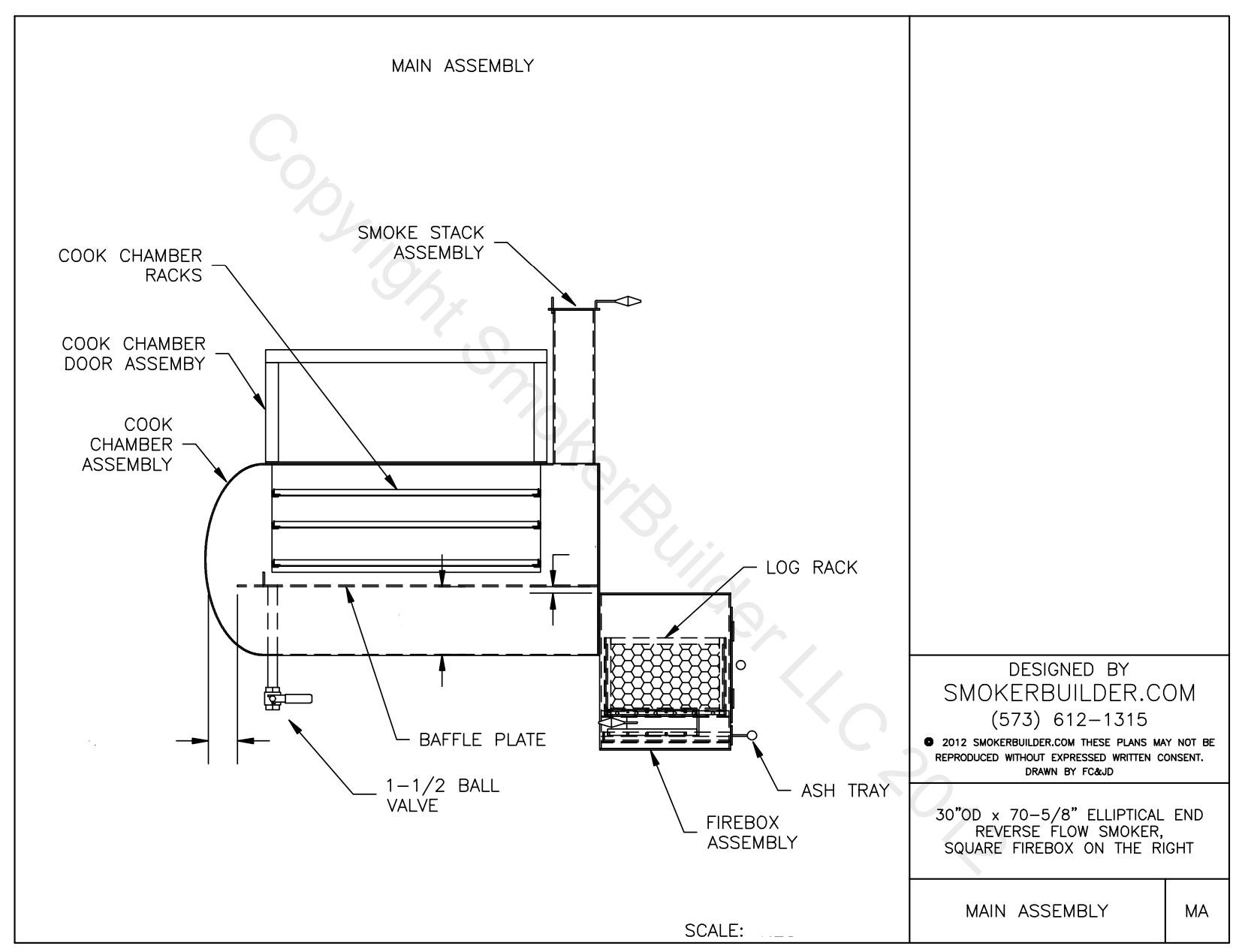

30 x 70.5 propane tank reverse flow smoker plans main assembly drawing, square firebox right
smoker blueprint

30" Diameter By 70.5 Long Propane Tank Reverse Flow Smoker Square Fire Box Right

$79.00
$79.00
4.9 out of 5 (269 reviews)
PDF plansInstant download after checkoutFree printed copy on request
This smoker can be built using a part of a 250 gallon propane tank. Simply cut one...

Building the cart too? Add those plans now, $50.

Each comes as its own download with your order.

Will my tank fit these plans?

These plans are drawn around a 30 in diameter tank, 70.5 in long.

Your tank will work if it measures about 28.5 to 31.5 in across and 63.5 to 77.5 in long.

If your tank is inside this range but not an exact match, you just adjust a few cut lines. If you need help, let us know by replying to your order confirmation email.

How to measure your tank, plus common tank sizes
  • Diameter: wrap a tape around the tank and divide by 3.14. Most people guess the diameter and guess wrong.
  • Length: measure end to end, tip to tip.
TankDiameterLength
120 gallon24 in68 in
250 gallon30 to 31.5 in87 to 94 in
320 to 330 gallon30 in115 to 120 in
500 gallon37 to 38 in117.5 to 120 in
500 gallon, short41 in104 in
1000 gallon41 in188 to 194 in
420 lb upright30 in54 in tall

Sizes vary a little from one tank maker to the next. These come from published tank maker spec sheets.

Not sure? Enter your tank size on Find My Plan to see every plan that fits it, or email your tank measurements to admin@smokerplans.net before you buy, and we'll tell you which plan fits.

30 x 70.5 propane tank reverse flow smoker plans main assembly drawing, square firebox right

30" Diameter By 70.5 Long Propane Tank Reverse Flow Smoker Square Fire Box Right

$79.00

30" Diameter By 70.5 Long Propane Tank Reverse Flow Smoker Square Fire Box Right

$79.00
