Will my tank fit these plans?
These plans are drawn around a 24 in diameter tank, 48 in long.
Your tank will work if it measures about 22.5 to 25.5 in across and 41 to 55 in long.
If your tank is inside this range but not an exact match, you just adjust a few cut lines. If you need help, let us know by replying to your order confirmation email.
| Tank | Diameter | Length |
|---|---|---|
| 120 gallon | 24 in | 68 in |
| 250 gallon | 30 to 31.5 in | 87 to 94 in |
| 320 to 330 gallon | 30 in | 115 to 120 in |
| 500 gallon | 37 to 38 in | 117.5 to 120 in |
| 500 gallon, short | 41 in | 104 in |
| 1000 gallon | 41 in | 188 to 194 in |
| 420 lb upright | 30 in | 54 in tall |
Sizes vary a little from one tank maker to the next. These come from published tank maker spec sheets.
Not sure? Enter your tank size on Find My Plan to see every plan that fits it, or email your tank measurements to admin@smokerplans.net before you buy, and we'll tell you which plan fits.

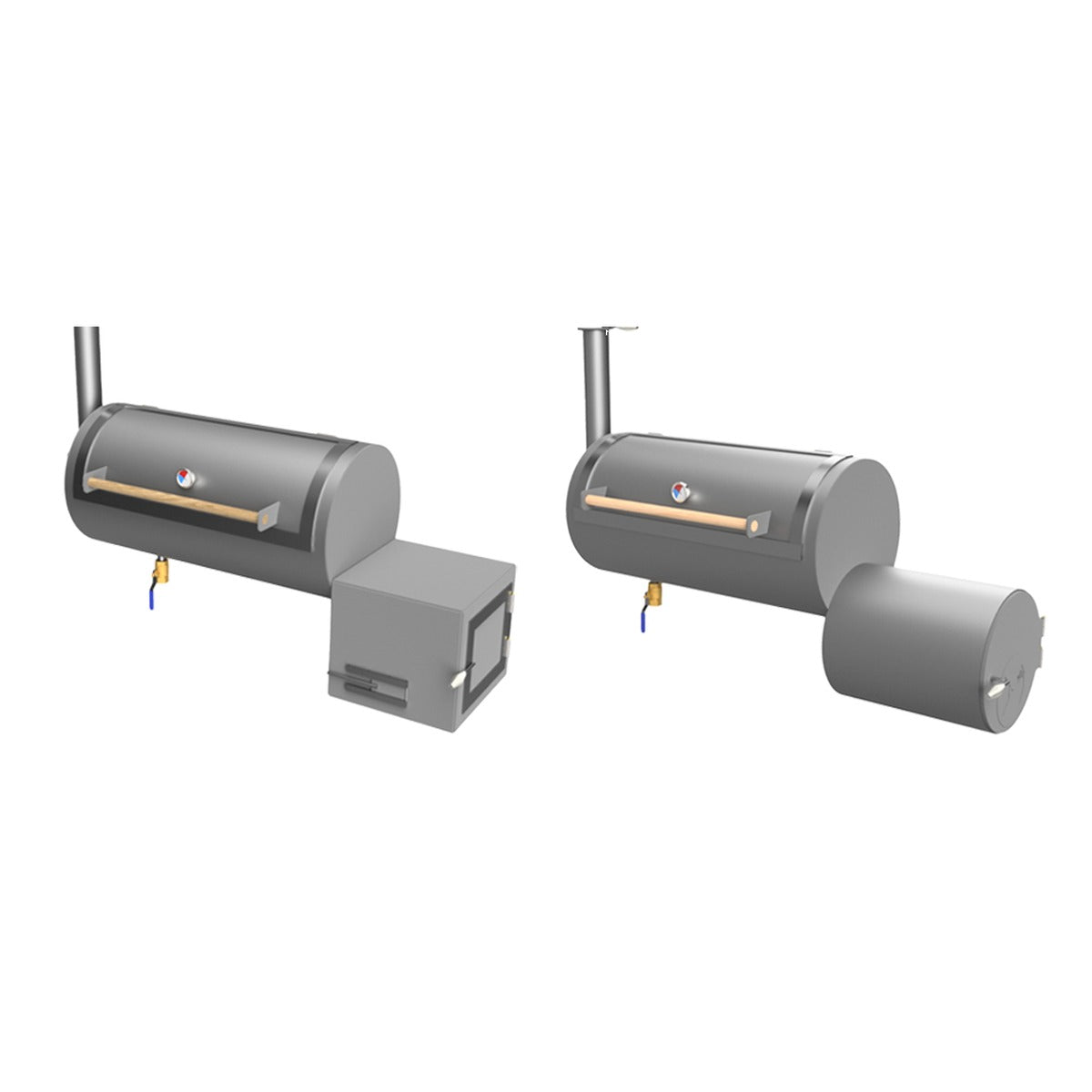

Plans for a 24 x 48 inch pipe offset smoker with one cook chamber door. You get two plan sets: one with a round firebox, one with a square firebox.
Free, just pay $12 S&H. These plans normally sell for $79 a set.
What you get: a printed set mailed to you, plus the digital PDFs to download right after checkout.
In the plans:
Add the Foundation Package for $39: the 3500 lb trailer plans plus the CNC cut file (.dxf), normally $100. It ships on a flash drive, and you get the digital copies too.
Building outside the US? Choose the metric version.
Questions? Email us.
These are plans for building a smoker yourself, not a finished smoker.
Our plans are digital downloads, so all sales are final. We can't offer refunds or exchanges once your order is placed.
If your download doesn't work or a file is missing, reply to your order confirmation email or email us and we'll get your plans to you.
Your PDF download shows up right after checkout, and the download link is in your order confirmation email too. Each download link works twice, so save your files to your computer when you download them.
Nothing ships for digital plans. Prefer paper? We'll mail a printed copy at no charge. Just reply to your order confirmation email.
