Building the cart too? Add those plans now, $50.
Each comes as its own download with your order.
Will my tank fit these plans?
These plans are drawn around a 30 in diameter tank, 60 in long.
Your tank will work if it measures about 28.5 to 31.5 in across and 53 to 67 in long.
If your tank is inside this range but not an exact match, you just adjust a few cut lines. If you need help, let us know by replying to your order confirmation email.
| Tank | Diameter | Length |
|---|---|---|
| 120 gallon | 24 in | 68 in |
| 250 gallon | 30 to 31.5 in | 87 to 94 in |
| 320 to 330 gallon | 30 in | 115 to 120 in |
| 500 gallon | 37 to 38 in | 117.5 to 120 in |
| 500 gallon, short | 41 in | 104 in |
| 1000 gallon | 41 in | 188 to 194 in |
| 420 lb upright | 30 in | 54 in tall |
Sizes vary a little from one tank maker to the next. These come from published tank maker spec sheets.
Not sure? Enter your tank size on Find My Plan to see every plan that fits it, or email your tank measurements to admin@smokerplans.net before you buy, and we'll tell you which plan fits.

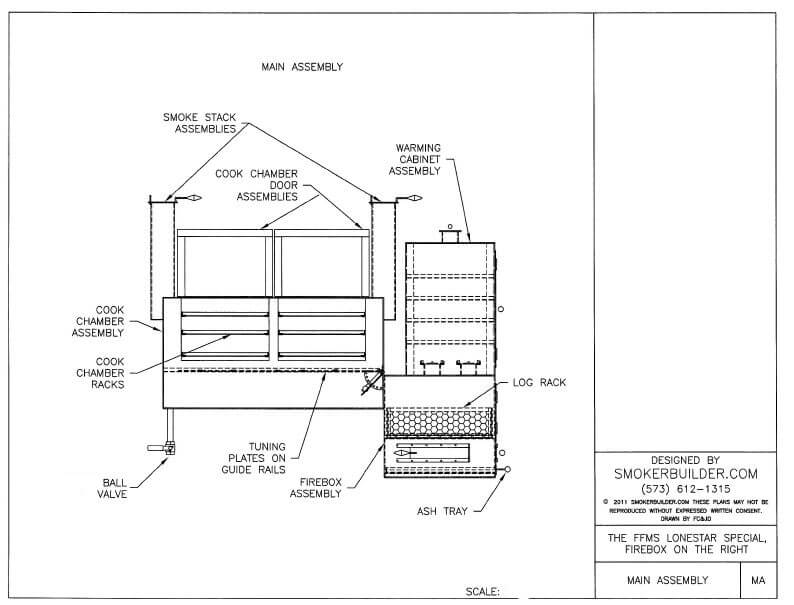

Plans for a hybrid smoker, 30 in diameter and 60 in long, with the firebox on the right. We designed it for a Texas competition BBQ team that wanted the stability of a reverse flow smoker with the versatility of an offset.
In the plans:
What you get: a 17 page PDF plan set drawn in AutoCAD to our BBQ Pit Engineering design standards. Your download shows up right after checkout.
First build? Builders tell us our plans are straightforward and easy to read.
Save time with add-ons, $50 each:
Want the firebox on the other side? See the firebox left version.
Questions about fit? Email us.
These are plans for building a smoker yourself, not a finished smoker.
Our plans are digital downloads, so all sales are final. We can't offer refunds or exchanges once your order is placed.
If your download doesn't work or a file is missing, reply to your order confirmation email or email us and we'll get your plans to you.
Your PDF download shows up right after checkout, and the download link is in your order confirmation email too. Each download link works twice, so save your files to your computer when you download them.
Nothing ships for digital plans. Prefer paper? We'll mail a printed copy at no charge. Just reply to your order confirmation email.
