500 GALLON PROPANE TANK Reverse Flow Smoker Plans. Full 10 page set of smoker plans drawn with Auto Cad for you to build a smoker.
This set of DIY plans shows you how to build an reverse flow smoker with a square fire box on the right side. Use a 500 gallon tank that is 38 inches diameter and 121 inches long from tip to tip for this build.
TANK LENGTH
500 gallon tanks come in a variety of sizes. For this plan, use one with a 38" diameter and a 121" tip to tip length.
UPGRADES
There are several ways to customize your smoker using the upgrades in the drop down menus right above the Add To Cart button!
Sled Plans
6000 lb Trailer Plans
Both The Sled and The Trailer Plans (Each additional file is $50.00)
DOWNLOADS
This product is a digital product and you will be able to download it immediately after purchase. You will also receive an order confirmation with the download link. The downloaded file will be in .pdf or .zip format.
NOTE* All files are in .pdf format
PHYSICAL COPIES
Physical copies of the plans are available by special request. They are printed on standard 11 by 8.5 printer paper. If you would like us to mail you a physical copy, please purchase the plans you want and then contact us through email by replying to your order confirmation email or you can use the chat on this website. There is no charge for this service.
SUPPORT

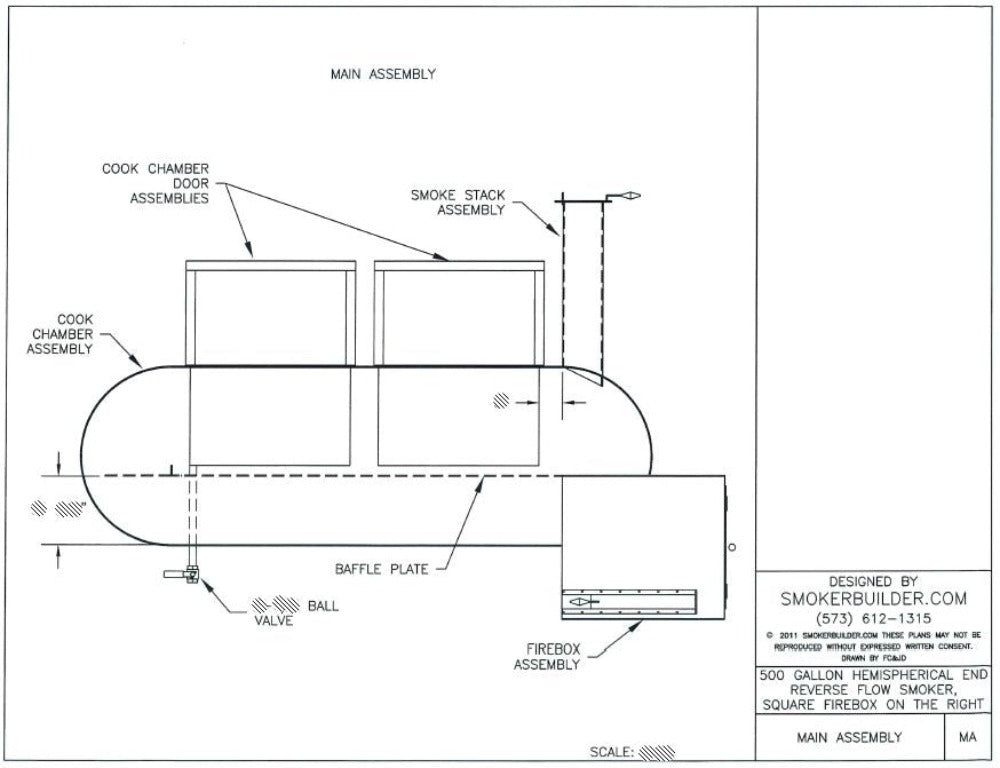

Even if you've never built a smoker before, this set of smoker plans tells you everything you need to know in easy to understand drawings and details.
Our plans also include support so you don't get stuck!
Simply use the contact information on the plans or the Chat button on this website near the bottom of every page!
If you need help with this you can use the Chat button at the bottom of the page or call us at 573-612-1315
Grab these plans and let's get your build started!
