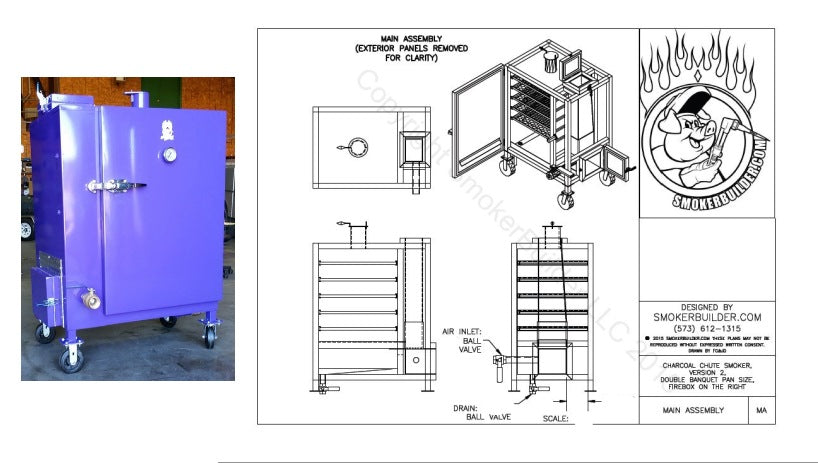

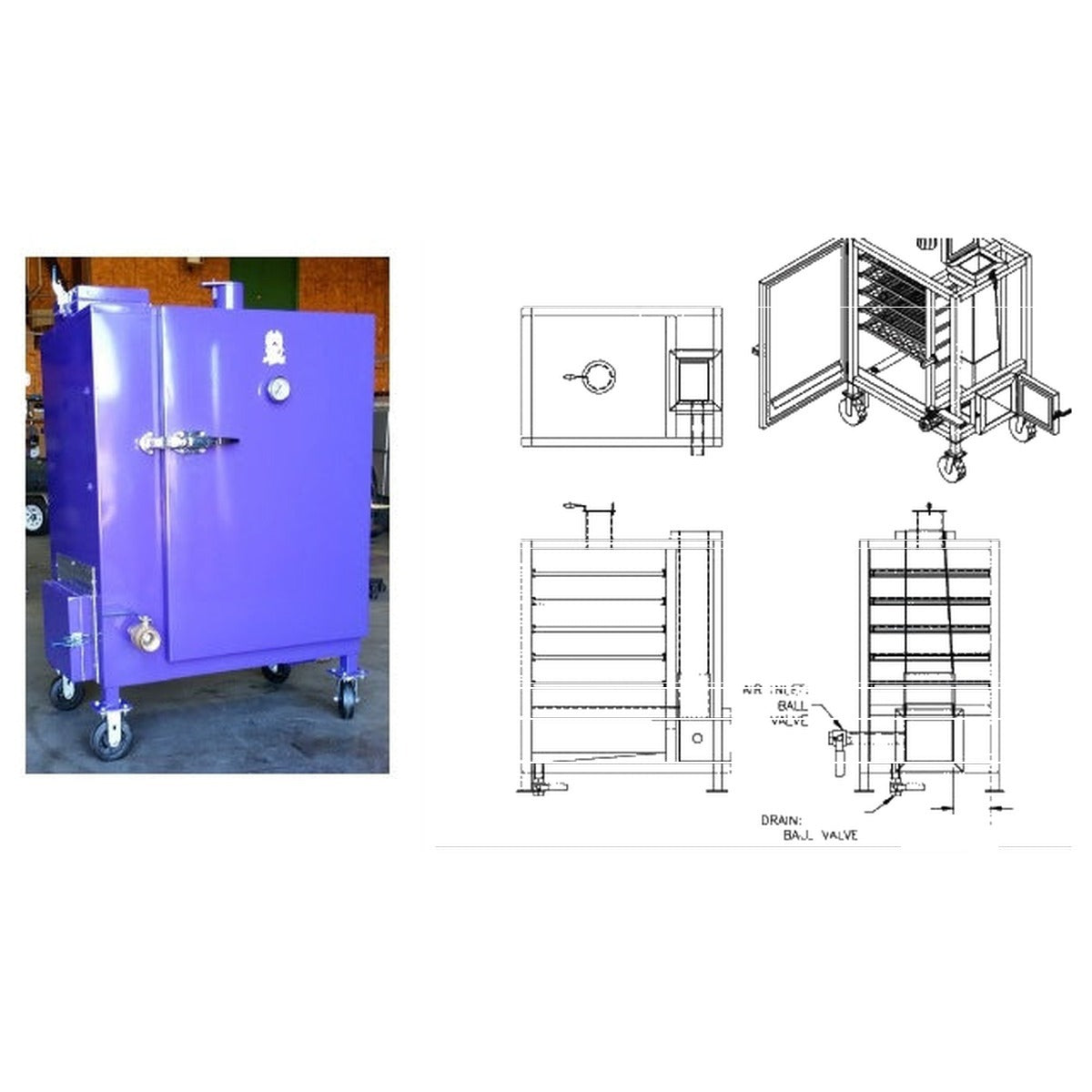

Gravity feed double pan cabinet smoker built from these plans, with assembly drawing
smoker blueprint
Gravity feed double pan cabinet smoker built from these plans, with assembly drawing
smoker blueprint

* DIGITAL PRODUCT- PDF DOWNLOAD

This product is a plan to help you build a smoker. You are not purchasing the smoker itself.

Gravity Feed Double Pan Smoker Plans Standard Doors 28x25 Racks

$79.00
$0.00
$79.00
Plans for an insulated gravity feed cabinet smoker with surface mounted doors and 28 x 25 inch...
Gravity feed double pan cabinet smoker built from these plans, with assembly drawing

Gravity Feed Double Pan Smoker Plans Standard Doors 28x25 Racks

$0.00 $79.00
Gravity feed double pan cabinet smoker built from these plans, with assembly drawing
smoker blueprint

Gravity Feed Double Pan Smoker Plans Standard Doors 28x25 Racks

$0.00 $79.00
CNC Cut File For Plasma Tables In .dxf Format For Only $50 More: No Thanks
Description
Description
x

Plans for an insulated gravity feed cabinet smoker with surface mounted doors and 28 x 25 inch cooking racks. Each rack holds 2 full size foil buffet pans.

Finished size: about 36 in wide, 48 in long and 60 in tall.

What you get: a 25 page PDF, fully detailed and dimensioned, drawn in AutoCAD. Your download shows up right after checkout.

Updated design:

  • Air inlet valve moved to the front of the smoker
  • Updated insulation, slam latch, hinge and gasket specs
  • Surface mount doors instead of recessed, for an easier build
  • Rain curbs on the chute and ash box doors

Save time: add the CNC cut file (.dxf) for $50 and let your plasma table cut the parts.

Questions? Email us.

These are plans for building a smoker yourself, not a finished smoker.
