CNC DXF- Door Support Safety Catch For Cook Chamber Doors

SmokerPlans By SmokerBuilder

Regular price $39.00 USD
Regular price $79.00 USD Sale price $39.00 USD
Sale Sold out
Shipping calculated at checkout.

If you want to make sure that heavy cooking chamber door is secured safely so it doesn't fall down on someone, this part is a MUST!

(This Product Is The PDF Drawing and the CNC file in .dxf format for you to make your own door support safety catch assembly.)

We designed this part and made it available because we know you want to be able to focus on cooking and not worry about the people around your cooker getting hurt!

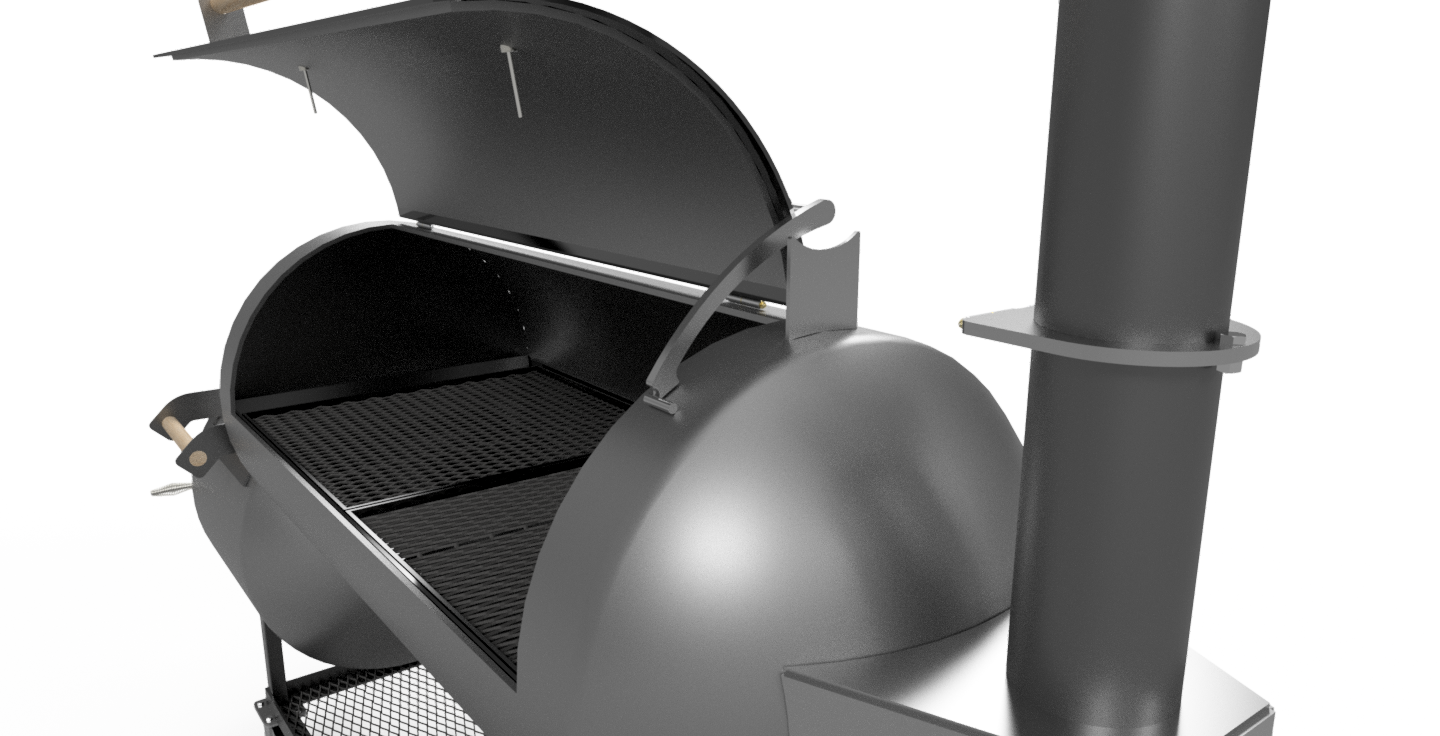

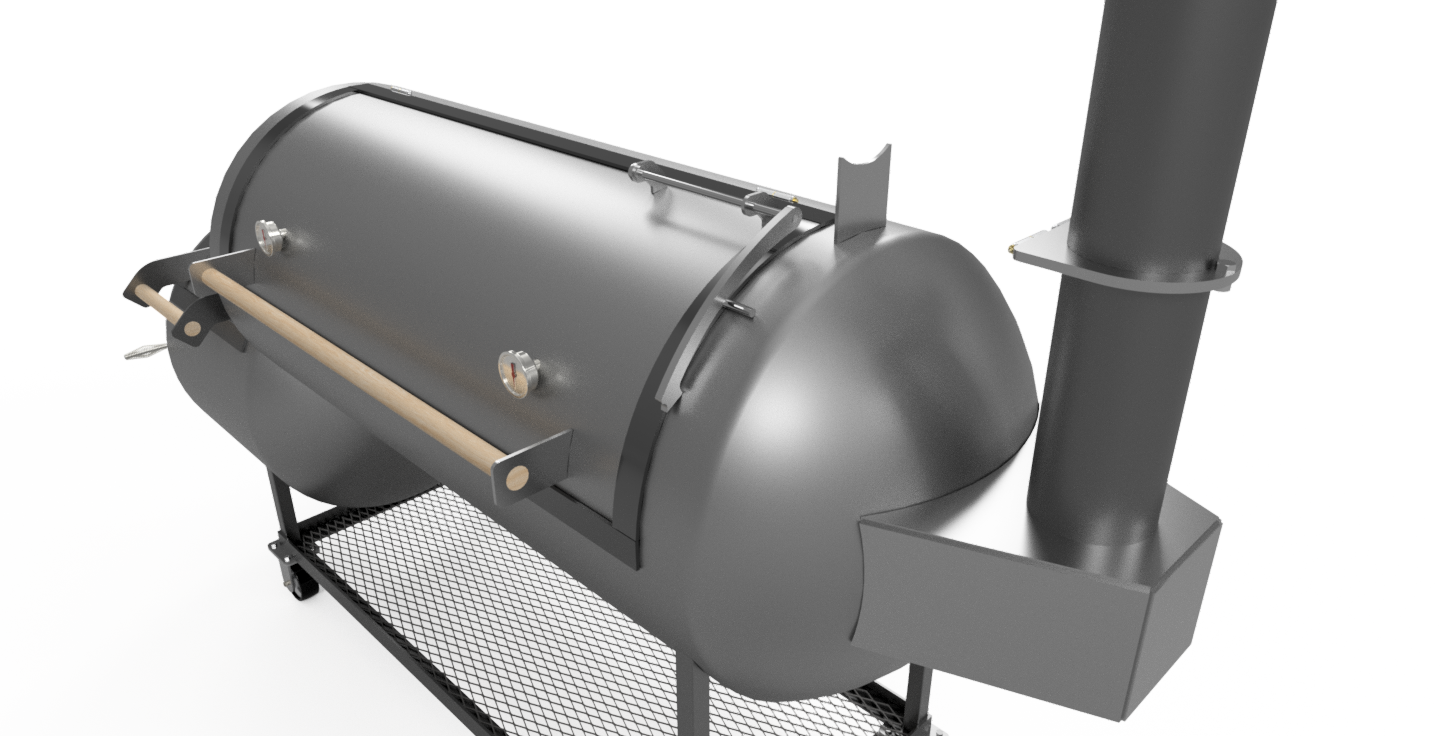

The 3D pictures show this part installed on a 30 inch diameter cooking chamber for reference.

This product includes:

•The CNC file in .dxf format for cutting on a cnc plasma table
•PDF Drawings for installation or Manual layout to make them by hand


NOTE: We will be listing these parts for sale in the smoker parts collection very soon as well.

Customer Reviews

Based on 1 review
Worked great

Got the file and rearranged the items of the file to take up less space before being sent to be laser cut. Installed easily, all good tolerances. Thank you.
