Will my tank fit these plans?
These plans are drawn around a 24 in diameter tank, 46.5 in long.
Your tank will work if it measures about 22.5 to 25.5 in across and 39.5 to 53.5 in long.
If your tank is inside this range but not an exact match, you just adjust a few cut lines. If you need help, let us know by replying to your order confirmation email.
| Tank | Diameter | Length |
|---|---|---|
| 120 gallon | 24 in | 68 in |
| 250 gallon | 30 to 31.5 in | 87 to 94 in |
| 320 to 330 gallon | 30 in | 115 to 120 in |
| 500 gallon | 37 to 38 in | 117.5 to 120 in |
| 500 gallon, short | 41 in | 104 in |
| 1000 gallon | 41 in | 188 to 194 in |
| 420 lb upright | 30 in | 54 in tall |
Sizes vary a little from one tank maker to the next. These come from published tank maker spec sheets.
Not sure? Enter your tank size on Find My Plan to see every plan that fits it, or email your tank measurements to admin@smokerplans.net before you buy, and we'll tell you which plan fits.

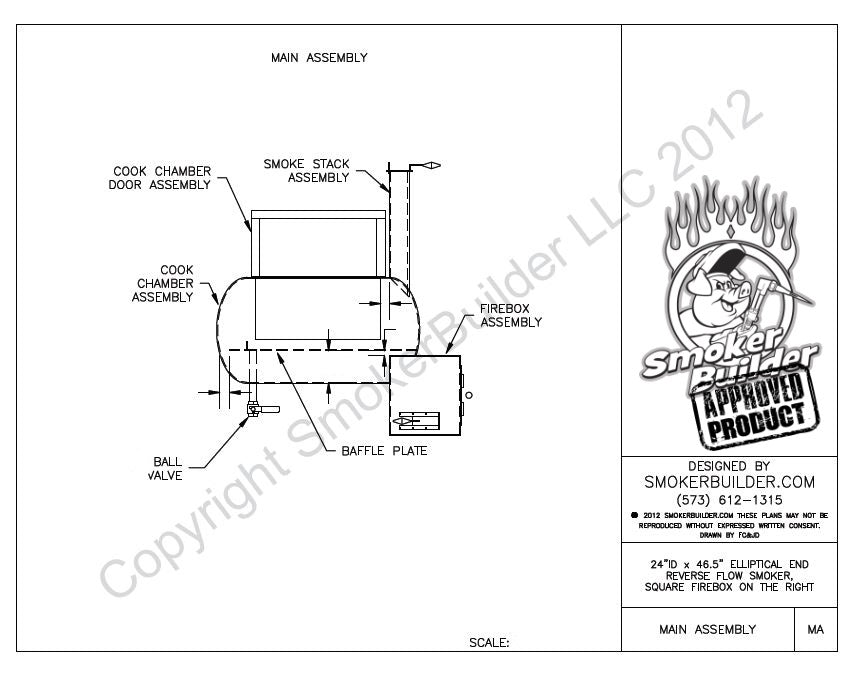

Plans for a backyard reverse flow smoker built from an air tank or propane tank 24 in diameter with short end bells, 46.5 in long, with one door and a square firebox on the right.
A very affordable build and a nice size for the backyard.
What you get: a PDF plan set drawn in AutoCAD to our BBQ Pit Engineering design standards. Your download shows up right after checkout.
